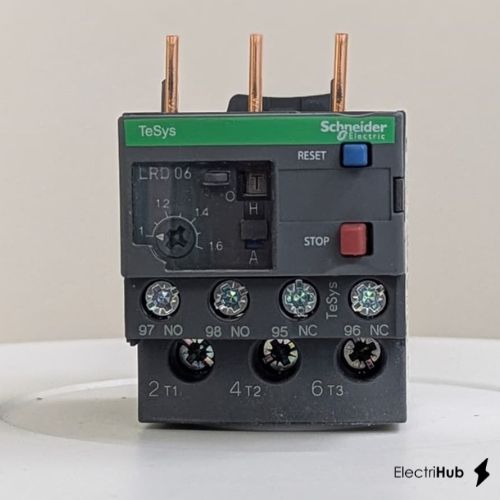

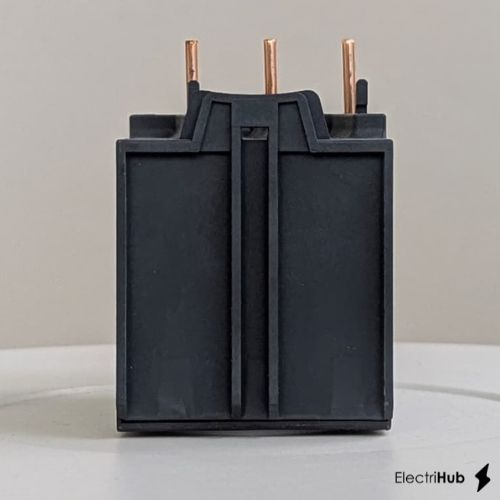

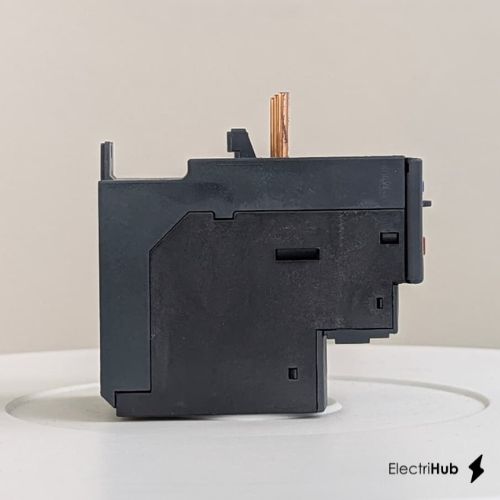

LRD06 - TeSys LRD thermal overload relays - 1...1.6 A - class 10A - Schneider Electric

The Schneider LRD06 Overload Relay provides thermal protection for motors by automatically disconnecting the circuit during overload conditions. Key features include adjustable current settings, Phase-loss protection, Class 10A or Class 20 tripping, test/reset functions, and compatibility with Schneider contactors such as LC1D series. It enhances motor safety and prevents overheating in industrial applications.

The Schneider LRD06 Overload Relay supports adjustable current ranges depending on the model series. These ranges allow precise tuning to motor full-load current. Accurate current adjustment ensures optimum motor protection and prevents nuisance tripping during startup loads.

The Schneider LRD06 typically supports Class 10A/20 overload tripping curves, designed to protect motors against prolonged overcurrent conditions. These trip classes are suitable for general-purpose industrial motors, conveyors, compressors, and pumps.

The Schneider LRD06 Overload Relay is designed for direct mounting on Schneider LC1D contactors. It supports screw terminals or EverLink terminals, depending on frame size. This ensures easy wiring, compact installation, and reliable coordination with motor starters.

The Schneider LRD06 Overload Relay is used in motor starters, control panels, pumping systems, compressors, elevators, industrial machinery, and conveyor automation. It ensures overload protection and prevents motor failures.

The Schneider Overload Relay datasheet includes trip class, current range, mounting type, coordination type (Type 1/Type 2), electrical endurance, terminal torque, auxiliary contact configuration, and environmental ratings. ElectriHub can provide the complete official PDF datasheet upon request.

Every Schneider LRD06 Over Load Relay purchased from Electrihub is 100% genuine, brand new, and supplied in original sealed packaging ensuring top performance and reliability. We source all products from trusted Schneider supply channels, so you can buy with complete confidence. Electrihub offers competitive pricing, fast delivery, and expert support to help you select the right Over Load Relay for your application. Whether for industrial automation, electrical panels, or control systems, you can rely on Electrihub for authentic Schneider products that deliver consistent quality and safety.

The Schneider Square D LRD06 is engineered for high reliability and industrial-grade performance. It offers robust protection, long electrical endurance, and compatibility with Square D control and protection systems. Its compact design, standardized mounting, and precise operating mechanisms make it ideal for demanding industrial applications.

The Schneider Square D LRD06 is typically used in motor control centers, protection panels, automation circuits, and machinery requiring dependable switching or motor protection. It is widely used in HVAC systems, industrial motors, compressors, pumps, and other electric control assemblies due to its high durability and performance stability.
